L9-46P9Z



L9-46P9Z

https://www.bspdbearing.com/product/l9-46p9z/
Product Attributes
Specifications
Part NumberL9-46P9Z
Weight(lbs)353

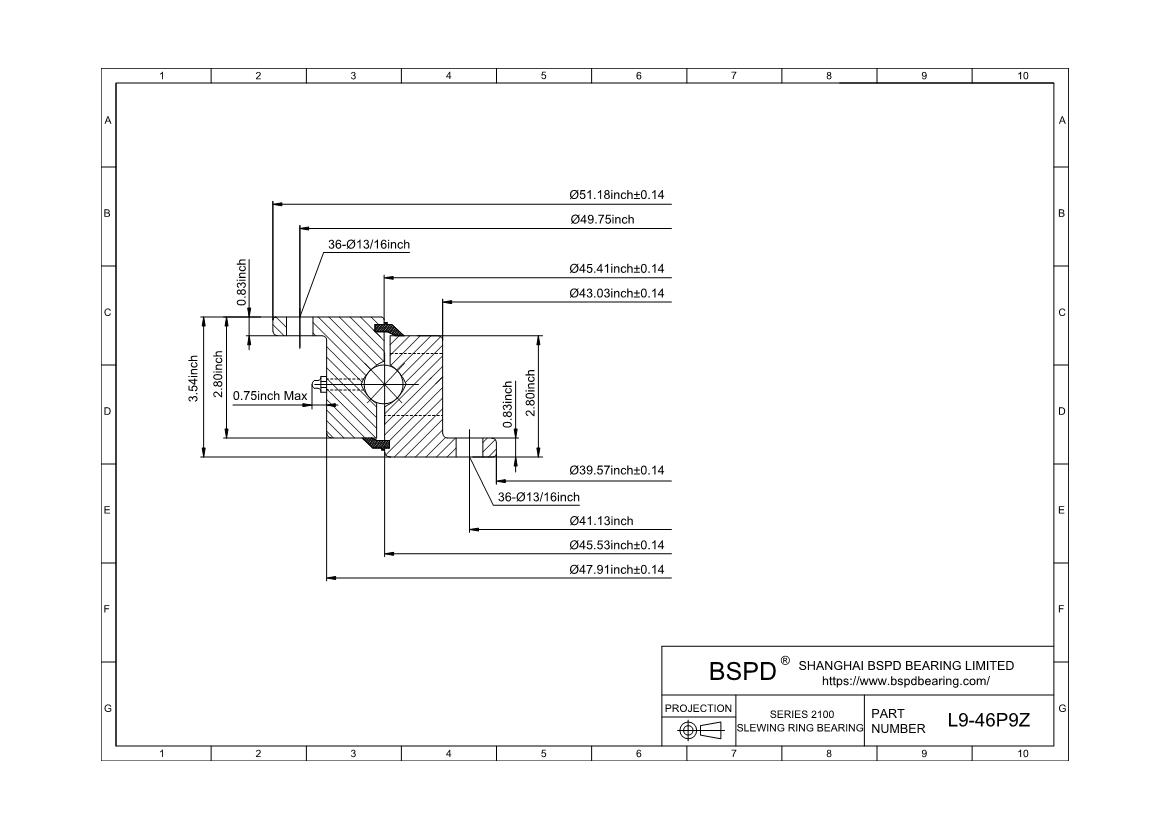

Outline Dimensions(inches)
OD51.18
ID39.57
IO45.53
OI45.41
IE43.03
OE47.91
Mounting Holes
OBC49.75
NO.Holes OBC36
IBC41.13
NO.Holes IBC36
Gear Data
PD
DP20 Stub
NO of Teeth
Max.Tangential Toothload
Mating PinionsP2.5-5.6D2
P2.5-6.8D2
Print PDF Request a 3D CAD Model
